- Model Number:4DC-5.2
- Crankcase Heater (220v) W:115
- Application:Refrigeration Parts
- Starting/ Locked Current A:62.2
- Authentication:TS16949
- Max Operating Current A:13.5
- Oil Volume L:2
- MOQ:1 SET
- Oil Supply Method:Centrifugal Inbrication
- Warranty period:one year
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:New Product 2020
- Type:Refrigeration Compressor
- Application:use refrigeration compressor
- Certification:TS16949
- Warranty:one year
- After-sales Service Provided:Online support
- Place of Origin:CN;ZHE
Product details

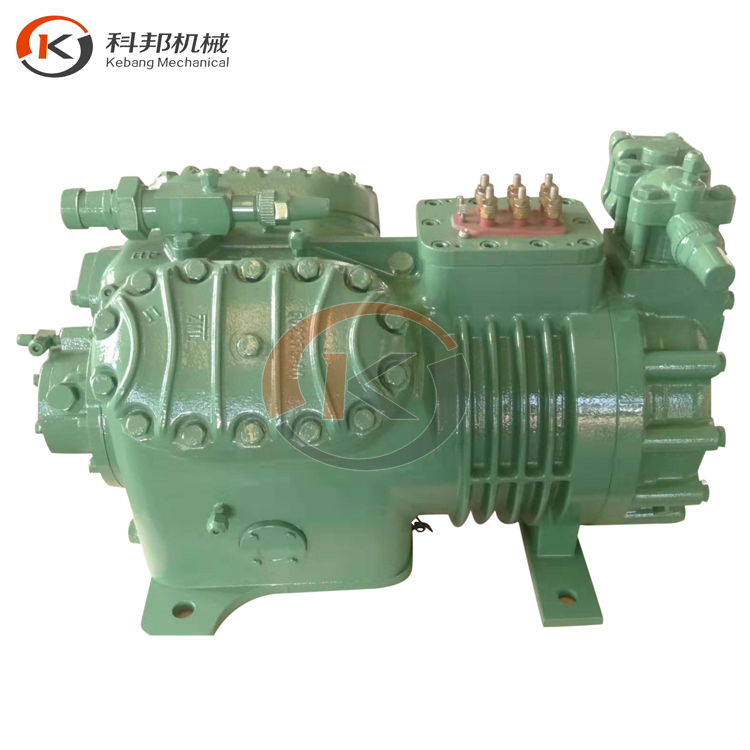

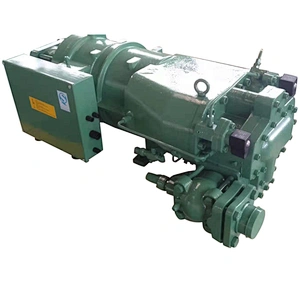

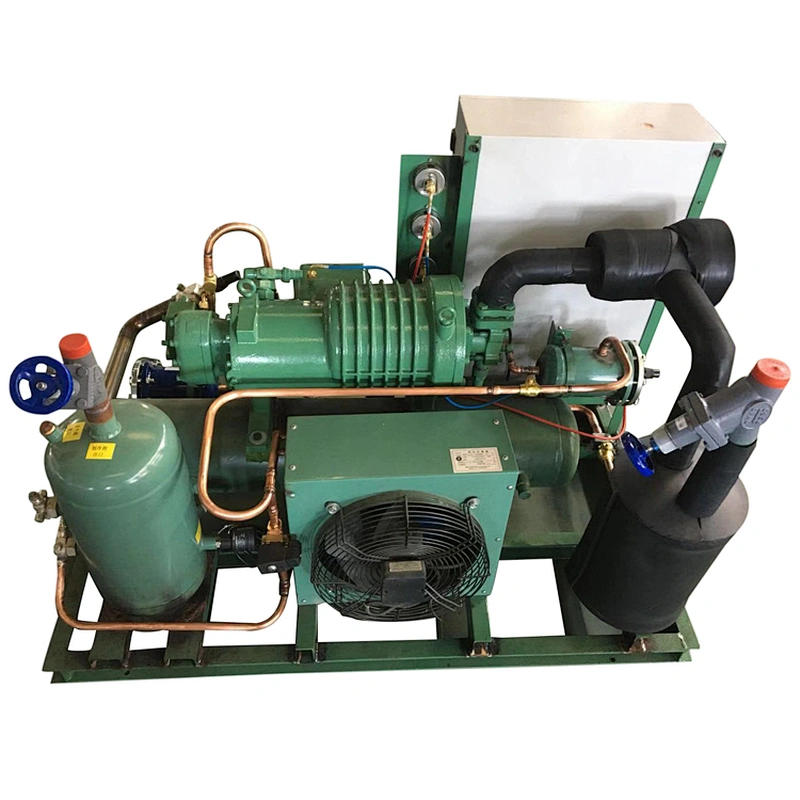

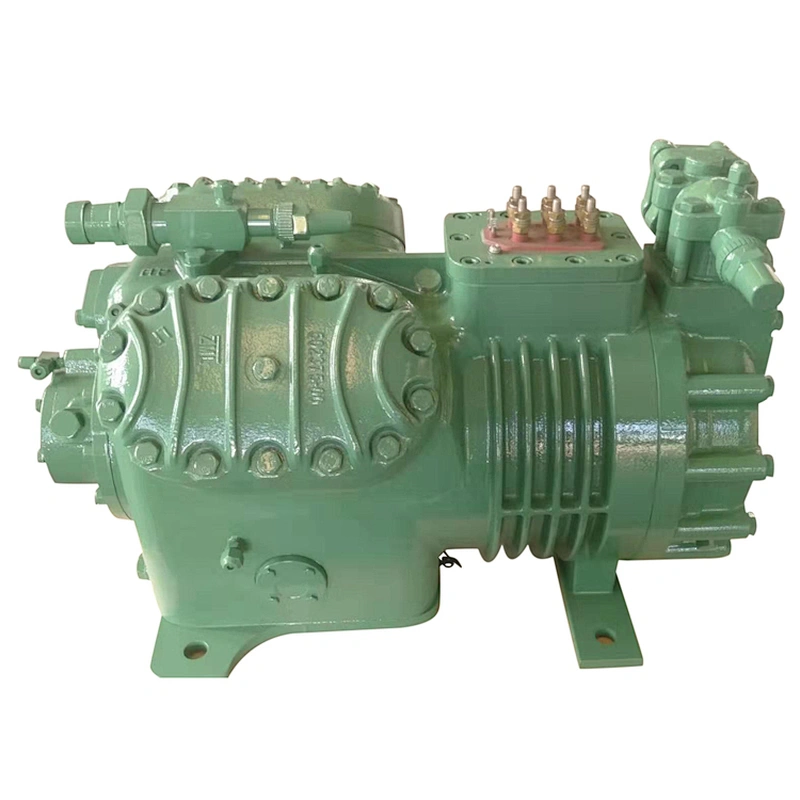

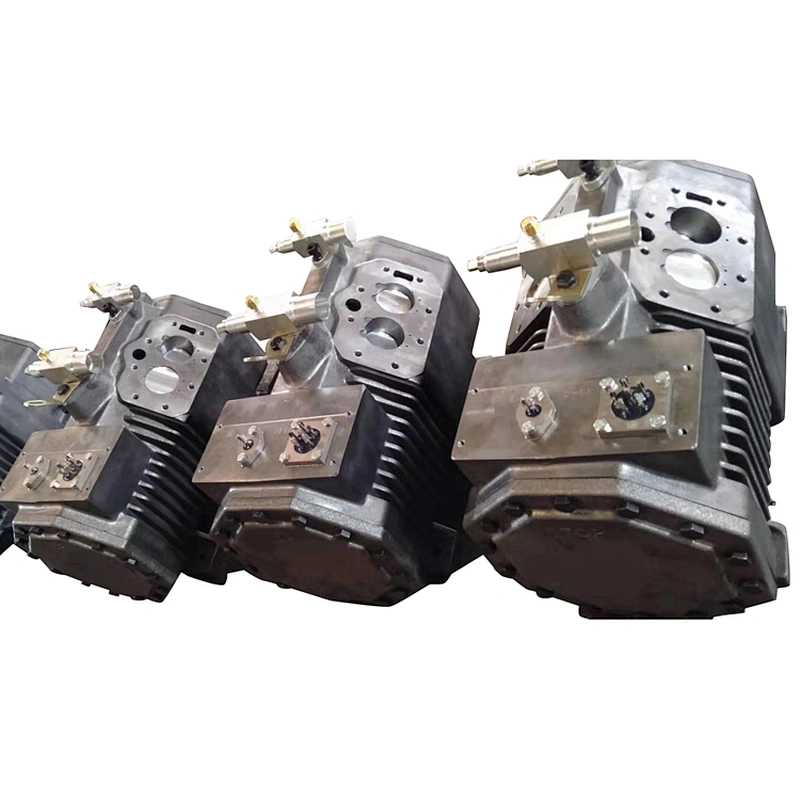

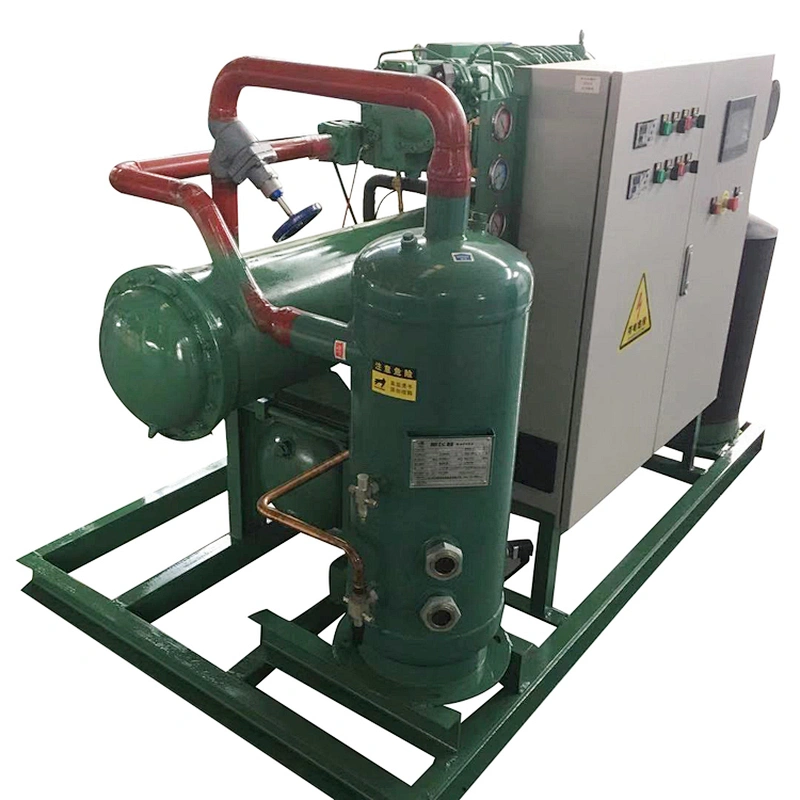

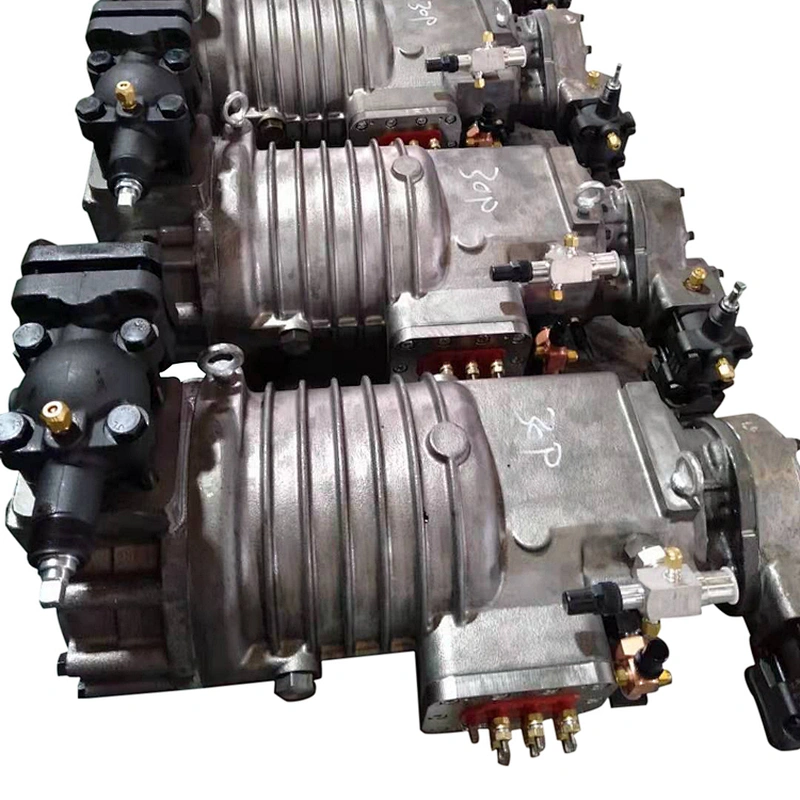

price refrigerator compressor cooling to fit 4DC-5.2 R22 condensing units

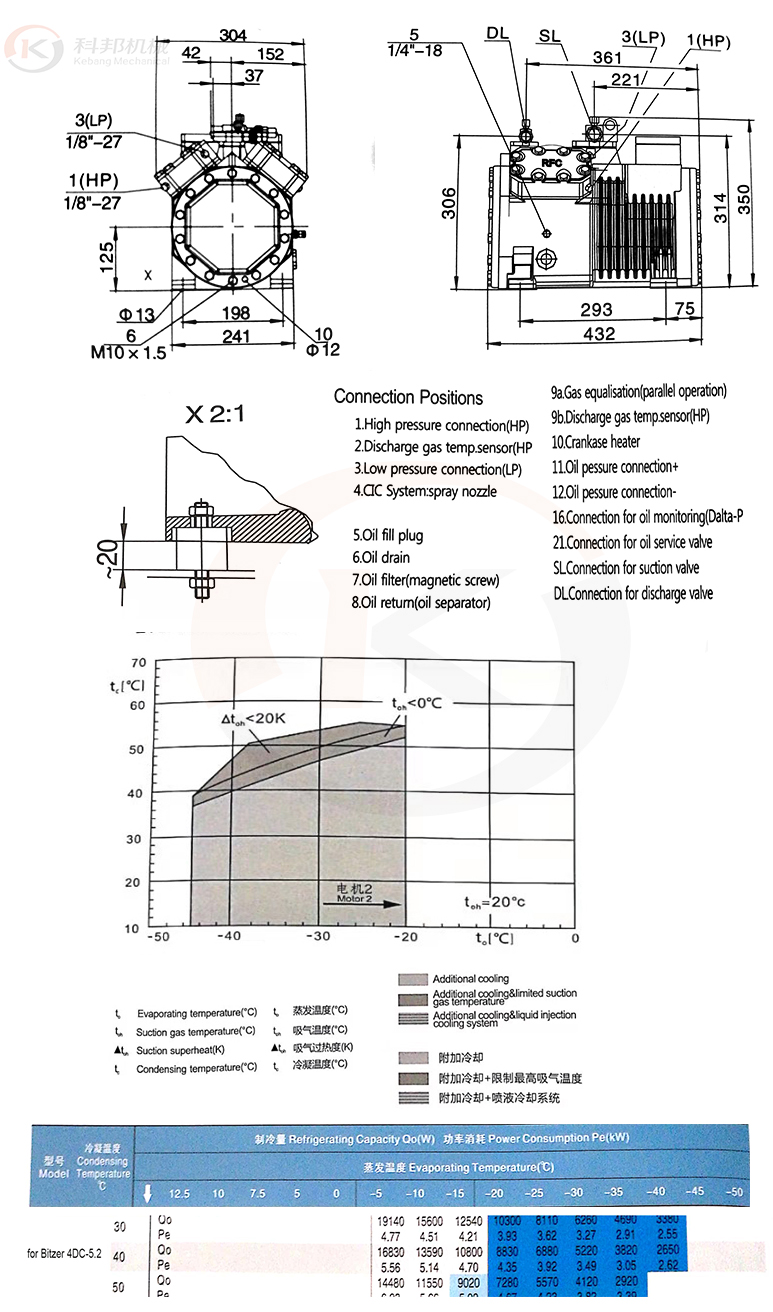

| Product name | price refrigerator compressor cooling to fit 4DC-5.2 R22 condensing units |
| Model Number | 4DC-5.2, R22 |
| Power HP/KW | 5/3.7 |
| Displacement (50Hz)m³/h high pressure | 26.84 |
| Number of Cylinder x Diameter x Stroke mm | 4 x φ50 x 39.3 |
| Oil Volume L | 2 |
| Power Supply V/φ/HZ | 380-420/Y/3/50 440-480/Y/3/60 |
| Max Operating Current A | 13.5 |
| Starting/ Locked Current A | 62.2 |
| Crankcase Heater/w (220v) | 115 |
| Oil Supply Method | Centrifugal Inbrication |
| Weight/kG (including Freezing Oil) | 84.5 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
Send Message

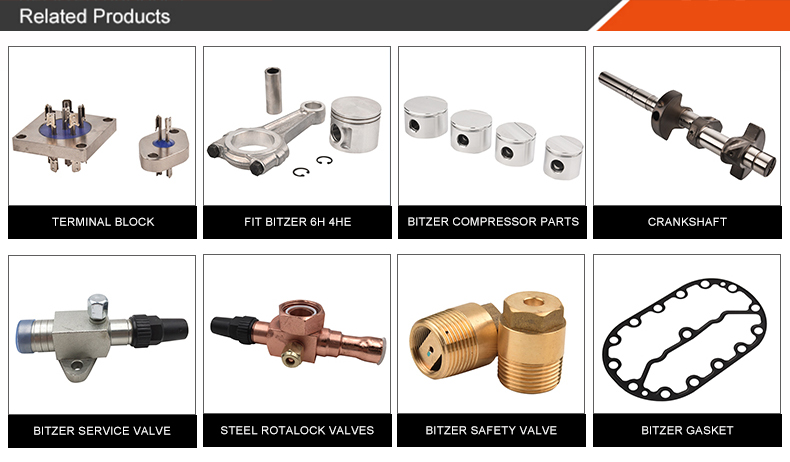

Related Products
